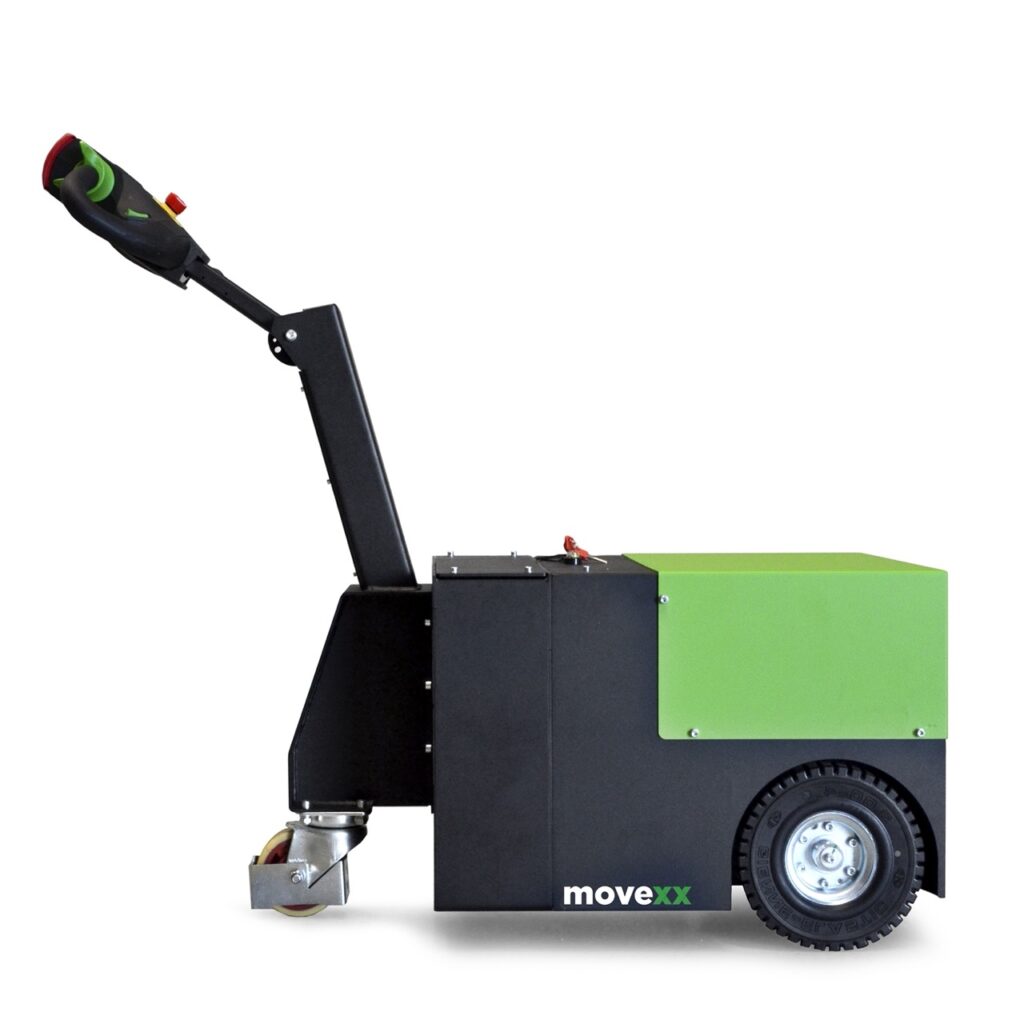

TT3500-S-Push
The TT3500-S-Push is an electric tug that generates traction by using its own weight. Unlike the pull-version TT3500-S, this model is designed for pushing heavy loads on wheeled carts, and is mostly used for carts with a hook or folding hook. It features an electric hook mechanism and can be expanded with a lifting module for carts without hooks. It is often used in data centers for crating and uncrating server racks.
TT3500-S-Push
Push version · 3,500 kg
The TT3500-S-Push generates traction from its own 300 kg weight and pushes loads on wheeled carts fitted with a hook or folding hook via an electric hook mechanism. An adjustable tiller keeps the operator upright; a lifting module extends it to carts without hooks.
Supplied, demonstrated and serviced across the UAE and GCC by ADW Machinery, the exclusive MOVEXX distributor. No operator licence is required.
Built for the job
Pull version
A pull version of the TT3500-S is also available for those who prefer pulling over pushing. Can be operated manually or with the optional remote control; often used in warehouses where several trolleys are moved at once.
Impressive power
The TT3500-S-Push can push up to 3.500 kg and effortlessly moves trolleys with a hook; the optional lifting module extends compatibility to carts without a hook.
Ergonomic comfort
Thanks to its compact and ergonomic design, you can always maintain a good working posture; the tiller is adjustable to the operator's height.
Exchangeable battery system available
Exchangeable battery system available
Electric hook with secure grip
Electric hook with secure grip
Technical specifications
| Max pulling power | Up to 3,500 kg |
|---|---|
| Pushing / capacity | Up to 3,500 kg (push) |
| Motor | DC motor 24V, 600 W |
| Max speed | 4 km/h |
| Battery | Built-in AGM battery 24V |
| Tyres | Full rubber 250 x 85 mm |
| Machine weight | 300 kg |
| Length | 1145 mm |
| Width | 511 mm |
| Work height | 976, 1224 mm |
| Coupling | Electric hook; optional lifting module for carts without hook |
| Environment | Standard — indoor |
| Operator | Walking (pedestrian), no licence required |
Specifications per MOVEXX datasheet (movexx.com) and may vary by configuration and coupling.
Options
- Lifting module for carts without hook
- Remote control
- Exchangeable battery system
Also available as
Download the datasheet
Official MOVEXX datasheet with dimension drawing and coupling options.
Datasheet-TT3500-S-PUSH.pdfSee it work
Want to see it on your own floor? Book a free demo — anywhere in the UAE, usually within a week. More videos on the demo library.
Who uses the TT3500-S-Push
Crating & uncrating racks
Pushes crated server racks with an electric hook; lift module for carts without hooks.
Data centres page →Warehouse trains
Several trolleys at once, manually or by optional remote control.
Retail distribution
Heavy roll-container trains through the dock.
TT3500-S-Push against its neighbours
| Model | Pull | Speed | Battery | Weight | Build | |
|---|---|---|---|---|---|---|
| TT2500-L | 2,500 kg | 3.8 km/h | Exchangeable Lithium LiFePO4 battery 24V | 142 kg | Standard | View → |
| TT3500-S-Push · this page | 3,500 kg | 4 km/h | Built-in AGM battery 24V | 300 kg | Standard | |
| TT3500-S | 3,500 kg | 4 km/h | Built-in AGM battery 24V | 300 kg | Standard | View → |
| TT2500-S-Push | 2,500 kg | 4 km/h | Exchangeable Lithium LiFePO4 battery 24V | 250 kg | Standard | View → |
See the full range side by side on the MOVEXX comparison table.
TT3500-S-Push questions
How much can the TT3500-S-Push move?
Up to 3,500 kg. Typical loads: server racks, carts & dollies, trailers. Tell us the weight of your fullest cart and the floor it runs on and we will confirm the model.
How is the battery charged?
The TT3500-S-Push has a built-in AGM battery 24V and charges from a standard socket, typically overnight. Ask ADW about duty cycles if you run multiple shifts.
Is there another version for my environment?
Yes — TT3500-S — pulling version; TT2500-S-Push — 2,500 kg. ADW will recommend the right build after a site visit.
