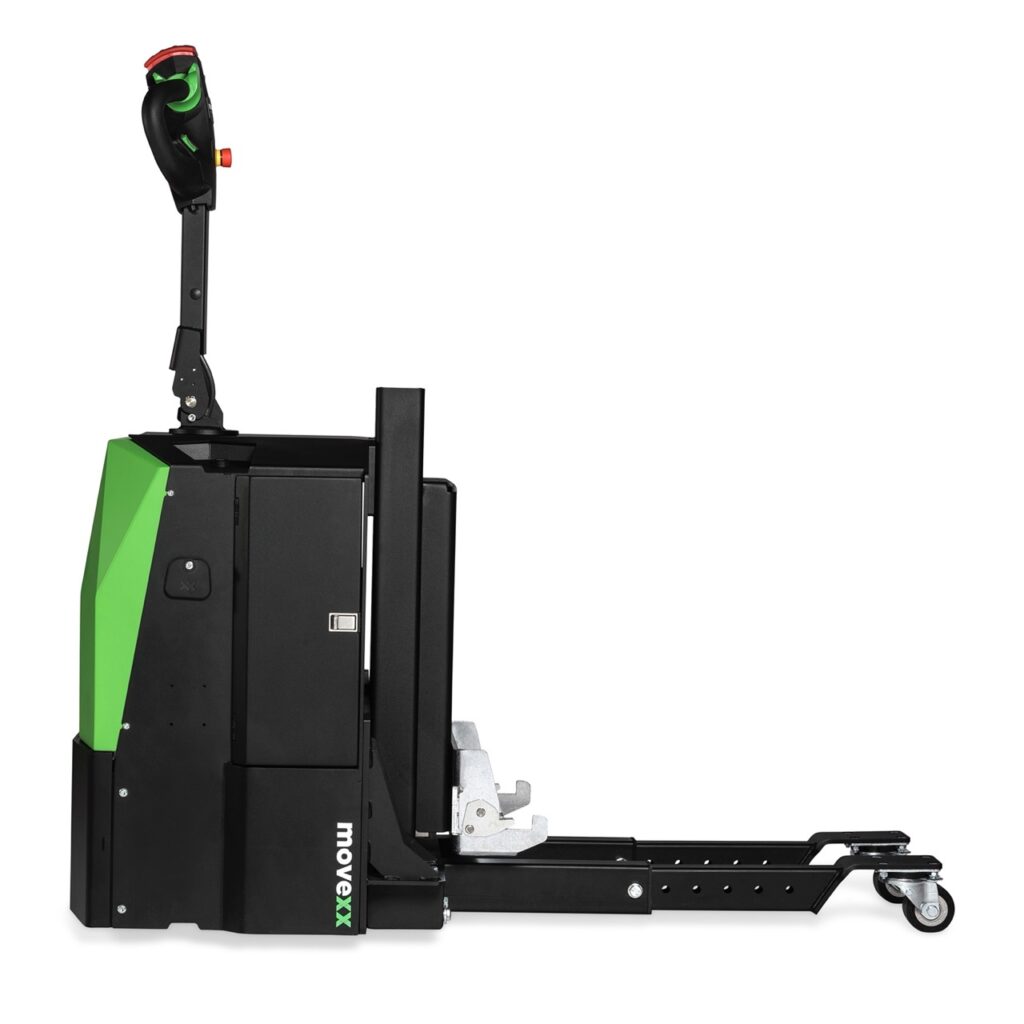

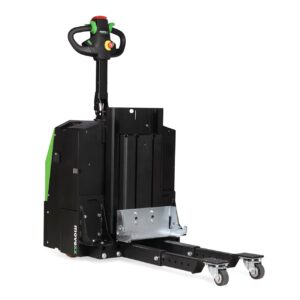

TT3500-M
The TT3500-M has been specifically designed for moving industrial carts in production, logistics and industrial environments. Thanks to its powered traction wheel, the operator's physical effort is minimized. Equipped with a 2.5 kW AC drive motor, the TT3500-M offers a cost-effective and productive solution for both short and long-distance transport of loads up to 3500 kg. Its compact design ensures maximum manoeuvrability in confined and busy working environments.
TT3500-M
3,500 kg · lithium · one-touch hook
The TT3500-M is the lithium heavy tug: a 700 W drive, exchangeable LiFePO4 battery, a spring-loaded hook with one-touch operation, parking brake and safety-reverse switch — simple and safe for production, logistics and warehouse work.
Supplied, demonstrated and serviced across the UAE and GCC by ADW Machinery, the exclusive MOVEXX distributor. No operator licence is required.
Built for the job
Powered traction wheel minimizes operator's
Powered traction wheel minimizes operator's physical effort.
Compact and exchangeable LiFePO4 batteries
Compact and exchangeable LiFePO4 batteries allow opportunity charging at any convenient power point.
All controls integrated into the
All controls integrated into the ergonomically designed tiller head; dual drive control levers for speed control and lift operation, operable with either hand.
Spring-loaded hook makes coupling industrial
Spring-loaded hook makes coupling industrial carts quick, easy and safe.
Effective parking brake holds the
Effective parking brake holds the machine on slopes and loading docks.
Robust metal cover protects the
Robust metal cover protects the drive system; low-profile chassis protects operator's feet; sturdy tiller arm keeps operator at a safe distance.
Technical specifications
| Max pulling power | Up to 3,500 kg |
|---|---|
| Motor | DC Motor 24V, 700 W |
| Max speed | 4.5 km/h |
| Battery | Exchangeable Lithium LiFePO4 battery 24V |
| Tyres | Rubber, Polyurethane |
| Machine weight | 323 kg |
| Length | 1313 mm |
| Width | 723 mm |
| Work height | 810/1316 mm (variable) |
| Coupling | Spring-loaded hook (one-touch operation) |
| Environment | Standard — indoor |
| Operator | Walking (pedestrian), no licence required |
Specifications per MOVEXX datasheet (movexx.com) and may vary by configuration and coupling.
Options
- Coupling to suit your carts
- Second Smart Battery + charger
Also available as
Download the datasheet
Official MOVEXX datasheet with dimension drawing and coupling options.
Datasheet-TT3500-M.pdfSee it work
Want to see it on your own floor? Book a free demo — anywhere in the UAE, usually within a week. More videos on the demo library.
Who uses the TT3500-M
Production supply
Short and long-distance cart moves on one lithium charge.
Manufacturing page →Warehouse trains
Spring-loaded one-touch hook couples in seconds.
TT3500-M against its neighbours
| Model | Pull | Speed | Battery | Weight | Build | |
|---|---|---|---|---|---|---|
| TT3500-S | 3,500 kg | 4 km/h | Built-in AGM battery 24V | 300 kg | Standard | View → |
| TT3500-M · this page | 3,500 kg | 4.5 km/h | Exchangeable Lithium LiFePO4 battery 24V | 323 kg | Standard | |
| TT6000-S | 6,000 kg | 4 km/h | Built-in AGM battery 24V | 700 kg | Standard | View → |
| TT3000-M-SR | 3,000 kg | 4.5 km/h | Exchangeable Lithium LiFePO4 battery 24V | 606 kg | Standard | View → |
See the full range side by side on the MOVEXX comparison table.
TT3500-M questions
How much can the TT3500-M move?
Up to 3,500 kg. Typical loads: trailers, carts & dollies, roll cages. Tell us the weight of your fullest cart and the floor it runs on and we will confirm the model.
How long does the battery last?
A charged LiFePO4 Smart Battery covers a normal shift. Because the pack is exchangeable, a second battery on charge gives 24/7 operation with no downtime — swap in seconds, no charging bay.
Is there another version for my environment?
Yes — TT3500-S — AGM version; TT3000-M-SR — server racks. ADW will recommend the right build after a site visit.
More from MOVEXX
Spec your TT3500-M
Send us a photo of your carts and the load — we'll confirm the coupling, price and lead time, and bring one to your site for a free demo.
